Plexstar WDM105

Plexstar WDM105 is 5 channel CWDM multiplexer and de-multiplexer in a single box. Each channel can carry up to 4G protocol independent traffic. It is mainly used to increase fiber capacity from a single fiber to 5 virtual fibers. WDM105 comes in three different models. One is an active device and provides 1+1 Multiplex Service Protection (MSP) between two points. Other two are passive devices and operates over two fibers or a single bi-directional fiber.

Features:
  • Supports up to 5 lambdas

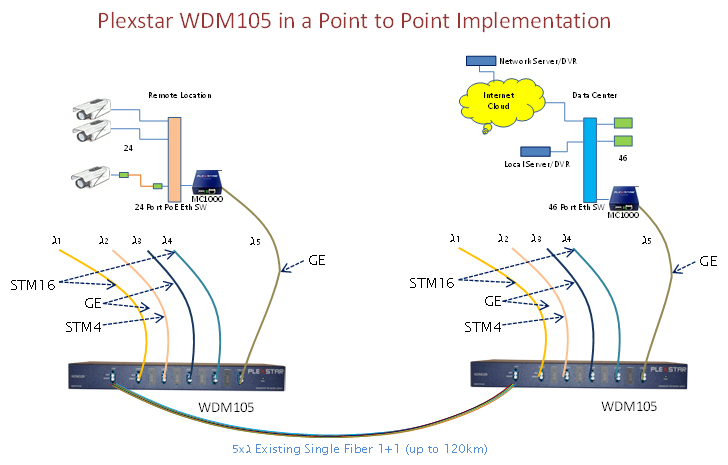

  • P2P maximum capacity: 20G
  • P2P Automatic Protection Switching (APS): Available: 1+1 MSP
  • Distance up to 120km
    - Available transponder types: 15 km, 20 km, 40 km, 60 km, 80 km, 120 km
  • 1.25G for Gigabit Ethernet transport
  • 1.25G to 4G for POS transport
  • 155M for STM1
  • 622M for STM4
  • 2.5G for STM16
  • 4G for Fiber Channel
  • Inter-operability
    - Alcatel, Cisco, Juniper, Huawei, ZTE, Plexstar and so on



Model:
  • WDM105: 5 channels
  • DWDM105P - 5 channels, MSP protected (1+1)

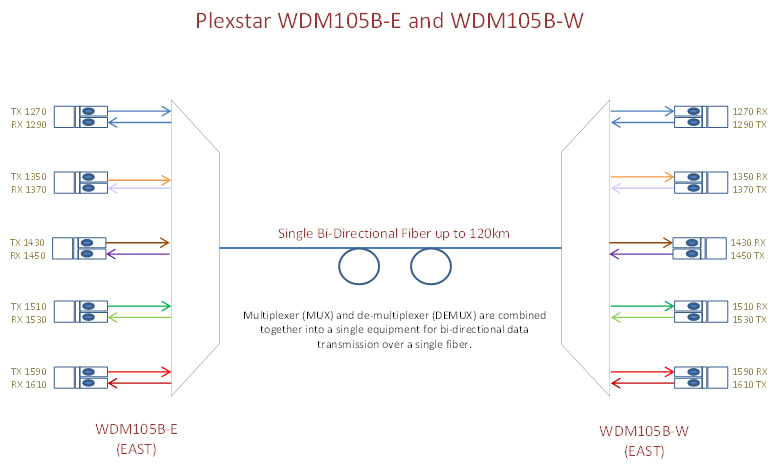

  • WDM105B-E & WDM105-W: Bidirectional transmission over a single fiber

WDM105 Front View
