PAMP-PA [Optical Amplifier]

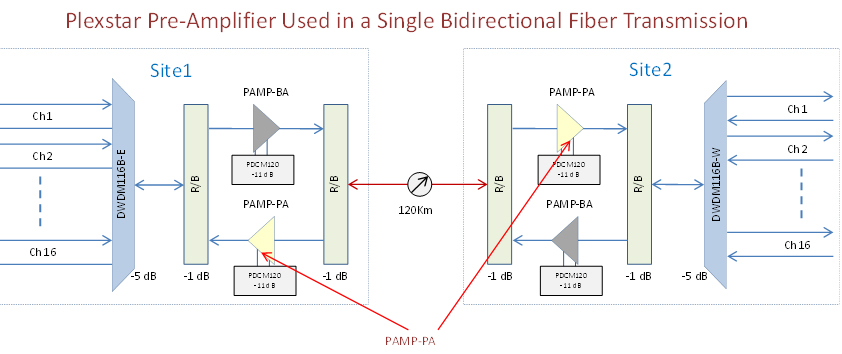

Plexstar PAMP-PA-9/20, PAMP-PA-12/23, and PAMP-PA-12/24 are high-gain modules for pre-amplifying low input level signals that operate at the receiving end of an optical link. These are designed for optical amplification to compensate for losses in a de-multiplexer located near the optical receiver.

Features:

• Low Noise Figure: Typical 4.5dBm high flatness.
• Highly precise AGC and ATC circuits.
• Adjustable gain via network management.
• RoHS compliant.

Application:

• Maximum output power: 9dBm, 12dBm.
• Optical power gain: 20dB, 23dB, 24dB.
• Amplifies entire C-Band 1528nm ~ 1561nm of all 40 lambdas of 10G traffic at repeating stations with 100GHz channel spacing.

Power:

• Input power: 110/220V AC or -48V DC.
• Power consumption: 18 Watts.
• Dual power input.

Physical Dimension:

• Size: 19" X 11" X 1.75" (1U).
• Weight: 5 pounds.
